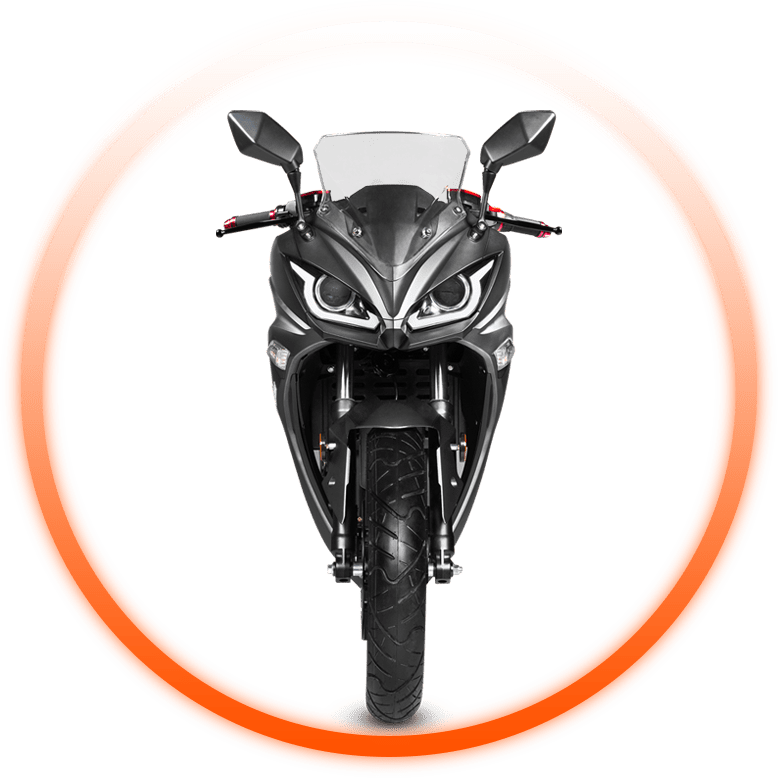

Joy Skyline is one of the performance E-Bikes from Joy, Skyline is loaded with stunning features and performance. It is equipped with 5000 watts DC Brushless Hub motor with rated torque of 230Nm, Skyline has battery voltage of 73.6V 72Ah fixed Lithium Ion battery. The company claims top speed of 90km/hr with range of 110km* on a single charge.
Specification:
Drive Motor
- Motor type
- DC Brushless Hub motor
- Drive motor
- 5000 watts
- Rated Torque
- 230Nm
Battery & charger
- Battery Type
- Lithium Ion battery ( fixed type)
- Battery voltage
- 73.6V
- Battery Ah rating
- 72Ah
- Charger Type
- 10Amp smart charger with over voltage, temperature and short circuit protection
- Charging Time (from flat to full charge)
- 9 hours
Performance
- Top Speed
- 90 km/hr
- Max. load
- 150 kg
- Range
- 110km*
Brakes
- Front
- Dual Disc
- Rear
- Disc
Dimensions & Weight
- Kerb weight
- 120 kg
- Tyre
- Front - 110/70 - 17, Rear - 140/70 - 17
- Dimensions
- L = 2020mm*, W = 790mm*, H = 1120mm*
- Seat Height
- 780 mm
- Wheelbase
- 1419 mm
- Ground clearance
- 175mm
Economics of usage
- Power (electricity units) consumed in charging the battery fully
- 6 units
- Running cost per km
- 40paise/km
- Range covered/Rs. 70 of units consumed in charging
- 175kms*
- Range covered/Rs. 10 of units consumed in charging
- 25kms*
